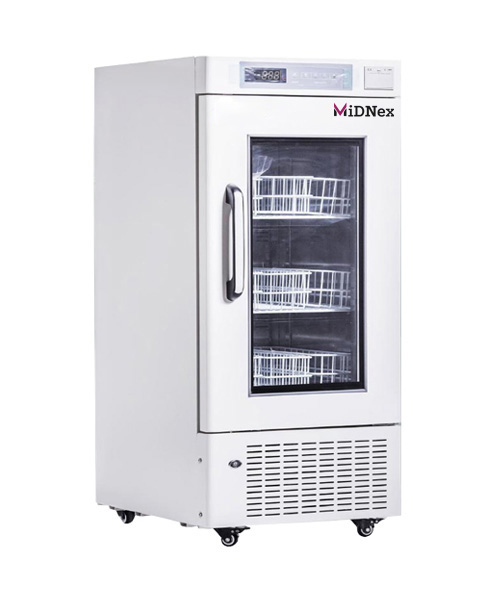

Blood Bank Refrigerator

MNL-B0063

Features:

• PRO-ACTIVE-Control: Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors.
• External housing made from galvanised sheet steel (rustproof), with white, anti-scratch powder coating. Length of the plug cable: approx. 2.8 m.
• Adjustable feet to compensate for uneven floors.
• Interior made from smooth aluminum with colorless protective coating.
• Interior consists of two drawers of aluminum on telescopic runners with stops. Stacking height: 23 cm. Capacity per drawer app. 25 blood bags, each 500 ml size.
• Extra-thick 70-mm insulation, made from high-quality, compression-moulded and environmentally friendly material. Energy saving.
• Self-closing door with easy-to-replace plastic magnetic seal frame, lockable.
• Door stop on the right-hand side (by default, see illustration), or the left-hand side, can be retrofitted.
• Forced-air cooling with axial blower, switches off auto automatically when you open the door, ensures a uniform temperature and minimizes temperature deviations.
• Automatic defrosting with time limit and temperature monitoring.
• Condensate evaporation in the refrigerating machine room.
• Key switch protected control panel against tampering. Membrane keyboard with digital temperature display and minimum/maximum temperature memory.
• Warning functions with visual and audible alarm signal in the case of power failure and temperature deviations. In the case of power failure, the monitoring unit remains in operation for approx. 72 hours on battery power. Door open alarm after 60 seconds.
• Alarms can be forwarded using the floating contact (e.g., to a mobile phone with optional GSM-Module or to a control center).
• Data documentation can be read via USB interface with MiDNex Data net software.
• Antifreeze against sub-zero temperatures.
• Statically ventilated refrigerating machine, vibration free, hermetically sealed, energy saving, low-noise, easy to service.

Optional equipment

• LED illumination mounted at the top.
• Equipped with castors.
• Drawer insert (set) with 3 adjustable length and 21 cross dividers per drawer.
• Additional length and cross dividers.
• Drawer made of stainless steel instead of aluminium.
• Condensate container can be emptied manually if no condensation is required (e.g., in an operating theatre).
• GSM-Module for alarm text message transmission (e.g., to a mobile phone).

Temperature documentation:

– PC-KIT-NET, PC-KIT-USB-MONITORING or PC-KIT-STICK

including software for temperature documentation.

– 4-pin PT 100 or PT 1000 temperature sensor, class

1/3 B, including built-in reference body.

– Disc-type pen recording thermometer, with 7-day

measuring cycle, incorporated, with 100 recording

discs and 5 felt tip pens.

– Mechanical pen-recording thermometer with two

waxed paper strips.
